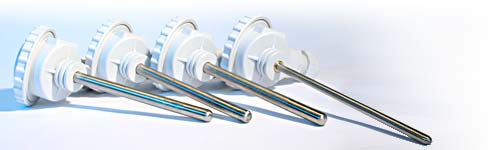

Autronica temperature sensors / transmitters

We offer a full range of Autronica temperature sensor / transmitter spare parts. Although these spare parts are made under the name of KONGSBERG they are the same high quality sensors that Autronica was known for, and are made by the same people - We are the source for Autronica sensors!

Delivery time

Through our worldwide network and large stock these Autronica temperature sensor / transmitter are provided with short delivery time and competitive prices.

Low temperature Autronica sensors

• Resistance temperature sensors with connection box
• Resistance temperature sensors with cable
• Resistance temperature sensors with individual wires
• Resistance temperature sensors for main bearing
• Resistance temperature sensors with plug
• Resistance temperature sensors, spring loaded
• Room temperature sensors
• Surface temperature sensors
• Wireless temperature sensors, SENTRY

High temperature Autronica sensors

• Resistance temperature sensors, long mantle type
• Resistance temperature sensor with connection box
• Resistance temperature sensor with cable
• Thermocouple temperature sensors with connection box
• Thermocouple temperature sensors with cable
• Thermocouple temperature sensors with mantle cable
• Thermocouple temperature sensors with plug
• Thermocouple temperature sensors, spring loaded

Autronica Liquid gas sensors

• Liquid gas temperature Resistance temperature sensors, long mantle type

Autronica Protecting wells

• Protection well, general type
• Protection well, exhaust type

Autronica sensor technologies

We offer tailor-made temperature sensors for diesel engines and related marine and industrial applications. Our range of sensors includes resistance (Pt100/Pt1000), thermocouple (NiCr/NiAl), thermistor elements (NTC), and our unique wireless temperature sensors based on a Surface Acoustic Wave (SAW) elements.

Response time of a temperature sensor

The response time of a temperature sensor is expressed by the time constant T. If a temperature sensor with temperature T1 is immersed in a liquid at temperature T2, T is the time it takes before the temperature sensor has reached 1 - 1/e ~ 0.63 = 63 % of the temperature difference T2-T1. After the time 2.3T, 90 % of the temperature difference is reached, and after 5T the sensor will show more than 99 % of the difference. If the sensor is mounted in a protection well, the time constant will be approximately doubled. To reduce the time constant, it is recommended to apply heat transfer compound between sensor and protection well. When compound is used, the time constant will increase by about 30 %.

Control and traceability

All Autronica temperature sensors deliver are controlled to fulfil their specifications, normally according to tolerance given by IEC. If desired by the customer, a certificate can be supplied with each sensor. Our calibration department maintains instruments used for production control. The calibration equipment is regularly checked by comparison with our factory standard, which again is traceable to national and international temperature standards according to ITS90. (ITS90 = The International Temperature Scale of 1990).
